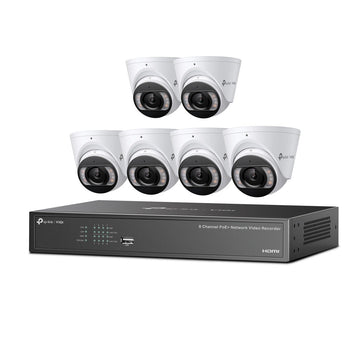

TP-Link VIGI NK8MP-T6425-2T 4MP Full-Color Turret IPC & 8 Channel PoE+ NVR KIT
TP-Link VIGI NK8MP-T6425-2T 4MP Full-Color Turret IPC & 8 Channel PoE+ NVR KIT
-Plug and Play
-Simpler Installation with PoE Technology
-Non-Stop Protection
-Ideal for Small-scale Scenarios
-2TB HDD Preinstalled
-24/7 Color camera
-AI Smart Kit
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | F1.6 |
| Lens | 2.8 mm, Fixed Focal Lens |
| Lens Mount | M12*P 0.5 |
| FOV | Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| White LED | • Quantity: 4 • Range: 30m |
| IR LED | • Quantity: 4 • Range: 30m • Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 704x576,640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| Operating Temperature | -30–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12 W |
| Weatherproof Rating | IP67 |
| NVR | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF |
| Synchronous Playback | 8-Channel* |
| Decoding Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
| Hard Disk | • 1 SATA Interface • Up to 16 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled |
| PoE Budget | 113 W Available for All PoE+ Ports†, 30 W Max per Port |
| Power Supply | 53.5V DC/2.43 A |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
All equipment supplied by the Company is covered by a Three (3) Year Limited Warranty commencing from the date of purchase.
During the warranty period, the Company warrants that the products shall be free from defects in materials and workmanship under normal use and service. Should any defect arise within the warranty period, the Company will, at its sole discretion, repair or replace the defective product or parts at no additional charge.
This warranty does not apply to damages resulting from misuse, abuse, improper installation, unauthorized modification or repair, accidents, negligence, or normal wear and tear.
Proof of purchase or other valid documentation may be required to obtain warranty service.
This Limited Warranty is non-transferable and applies only to the original purchaser unless otherwise agreed in writing.
