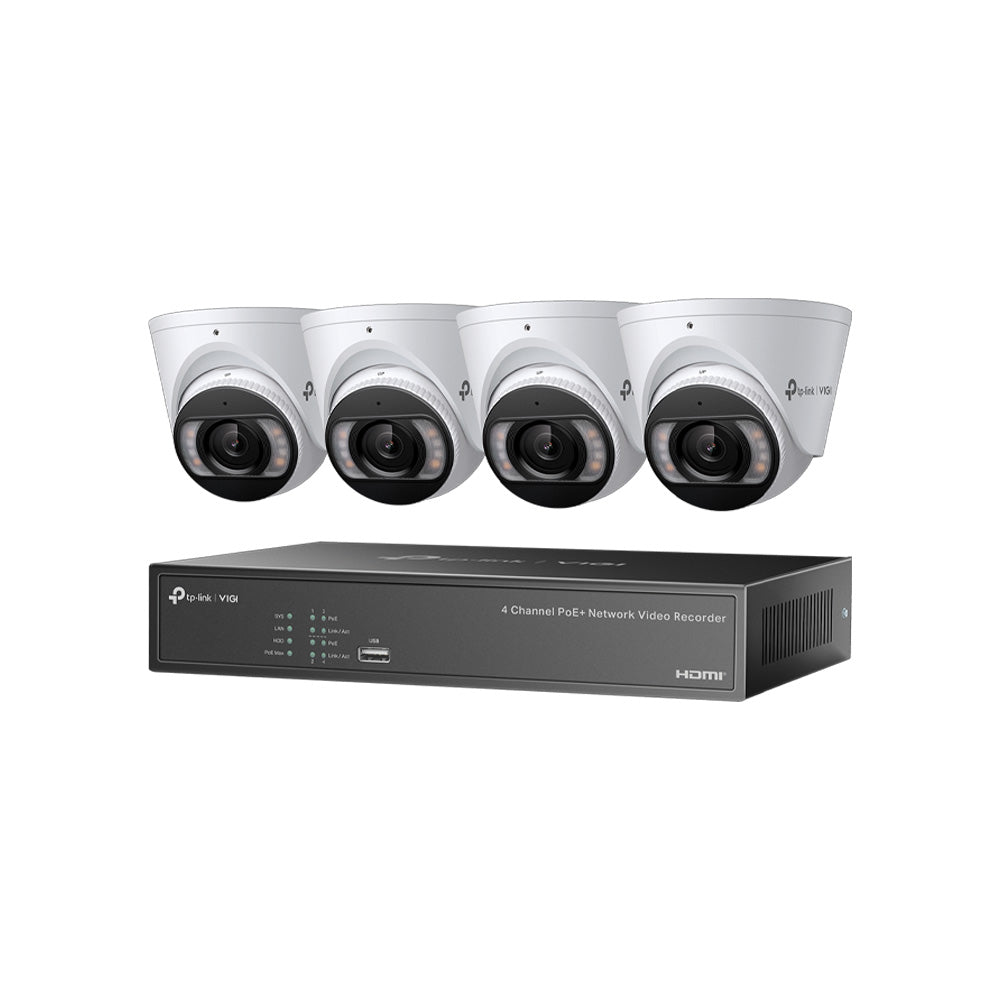

TP-Link VIGI NK4P-T4425-2T 4MP Full-Color Turret IPC & 4 Channel PoE+ NVR KIT
In stock Ships from Canada
- Tracked deliveryTracking on Canadian shipments
- Local warranty supportCanadian warranty assistance
- Compatibility assistancePre-purchase system check
GTA installation service Available only within the Greater Toronto Area Book installation
Installation service is available only within the Greater Toronto Area (GTA). Service outside the GTA is not currently available. Your appointment is confirmed only after our team verifies the address, installation requirements and final quote.
TP-Link VIGI NK4P-T4425-2T 4MP Full-Color Turret IPC & 4 Channel PoE+ NVR KIT est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Payment information is encrypted and securely processed.
Compatibility & specifications
Compatibility & specifications
Check camera technology, recorder channels, PoE requirements and storage compatibility before ordering.
Delivery, warranty & returns
Delivery, warranty & returns
Review the shipping estimate, warranty coverage and return conditions shown for this product. Contact us if you need clarification before purchase.
Not sure whether it works with your system?
Contact us before ordering to confirm compatibility with your cameras, recorder and PoE equipment.
TP-Link VIGI NK4P-T4425-2T 4MP Full-Color Turret IPC & 4 Channe...
TP-Link VIGI NK4P-T4425-2T 4MP Full-Color Turret IPC & 4 Channel PoE+ NVR KIT est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Product guide
Complete system overview
Review the included recorder, cameras, storage options and accessories in the product description before ordering.
Camera specifications
Resolution: See product specifications
Camera design: Turret
Night-view capability
Check the product description for infrared range, full-color night vision, supplemental lighting and low-light performance.
Remote viewing
Confirm the supported mobile app, remote live view, playback and notification features for this model.
Power and connection
Connection: Wired
Power source: DC 电源
Spécifications
Spécifications
-Simpler Installation with PoE Technology
-Non-Stop Protection
-Ideal for Small-scale Scenarios
-2TB HDD Preinstalled
-24/7 Color camera
-AI Smart Kit
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | F1.6 |
| Lens | 2.8 mm, Fixed Focal Lens |
| Lens Mount | M12*P 0.5 |
| FOV | Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| White LED | • Quantity: 4 • Range: 30m |
| IR LED | • Quantity: 4 • Range: 30m • Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 704x576,640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| Operating Temperature | -30–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12 W |
| Weatherproof Rating | IP67 |
| NVR | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF |
| Synchronous Playback | 4-Channel* |
| Decoding Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP • 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Hard Disk | • 1 SATA Interface • Up to 10 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled |
| PoE Budget | 53 W Available for All PoE+ Ports†, 30 W Max per Port |
| Power Supply | 53.5V DC/1.31 A |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
