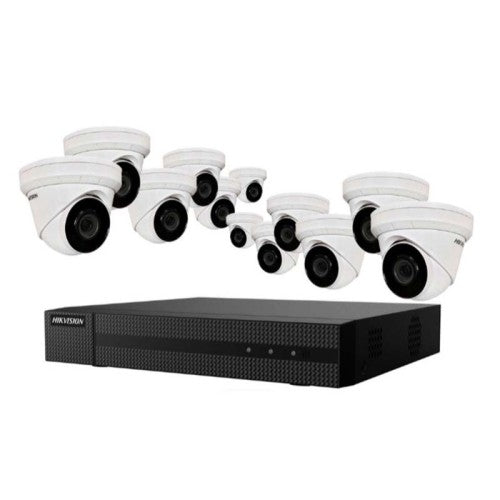

Hikvision EKI-K164T412 16 Channel 8MP/4K PoE NVR with 4TB HDD & 12 X 4MP Night Vision Turret Cameras Kit
Hikvision

Hikvision EKI-K164T412 16 Channel 8MP/4K PoE NVR with 4TB HDD & 12 X 4MP Night Vision Turret Cameras Kit

Regular price $1,699.00 CAD
Sale price $1,699.00 CAD Regular price
Unit price
Size guide Share
Hikvision EKI-K164T412 16 Channel 8MP/4K PoE NVR with 4TB HDD & 12 X 4MP Night Vision Turret Cameras Kit

Hikvision EKI-K164T412 16 Channel 8MP/4K PoE NVR with 4TB HDD & 12 X 4MP Night Vision Turret Cameras Kit

Regular price $1,699.00 CAD
Sale price $1,699.00 CAD Regular price
Unit price
Product description
Shipping & Return
Product reviews

-Record from and Manage up to 16 Cameras

-Up to 8MP Recording Resolution

-4TB Preinstalled HDD

-H.265+/H.265/H.264+/H.264/MPEG-4 Codecs

-16 PoE Ports

-12 4MP 2.8mm Turret Cameras Included

-IR LEDs for up to 65' of Night Vision

-100° Horizontal Field of View

-HDMI and VGA Video Outputs

-IP67-Rated Cameras for Outdoor Use

Number of Channels
16
Resolution
Up to 8 MP
Two-Way Audio
1-Channel, RCA (2 V p-p, 1 Kilohm)
Bandwidth
Incoming: 160 Mb/s
Outgoing: 80 Mb/s
Recording Resolution
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI Output Resolution
1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
VGA Output Resolution
1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio Output
1-Channel, RCA (Linear, 1 Kilohm)
Decoding Formats
H.265+, H.265, H.264+, H.264, MPEG-4
Playback Resolution
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback
16 Channels
Decoding Capability
1 Channel at 8 MP
4 Channels at 1080p
Network Protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
SATA
2 x SATA Interface
Drive Bays
2
HDD Capacity
6 TB per HDD
HDD Included
4 TB
Network Interface
1 x RJ45 1000M Self-Adaptive Ethernet Port
USB
2 x USB 2.0
PoE Interface
16 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power
≤150 W
PoE Standard
IEEE 802.3af/at
Power Supply
100 to 240 VAC
Power
<280 W
Power Consumption
≤15 W (Without HDD)
Operating Temperature
14 to 131°F / -10 to 55°C
Operating Humidity
10 to 90%
Rack Units
1 RU
Dimensions
15.2 x 12.4 x 2" / 385 x 315 x 52 mm
Weight
5.7 lb / ≤2.7 kg (Without HDD)

Camera
Image Sensor
1/3", 4 MP Progressive Scan CMOS
Minimum Illumination
Color: 0.03 Lux (f/2.0 with AGC)
B&W: 0 Lux
Shutter Speed
1/100,000 to 1/3 Seconds
Slow Shutter
Yes
Day/Night
IR Cut Filter
Digital Noise Reduction
3D-DNR
WDR
Digital Wide Dynamic Range
3-Axis Adjustment
Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360°
Lens
2.8mm
Lens Mount
M12
Aperture
f/2.0
Field of View
Horizontal: 100°
Vertical: 55°
Diagonal: 117°
IR Range
65' / 19.81 m
IR Wavelength
850 nm
Video Compression
Main Stream: H.265+, H.265, H.264+, H.264
Sub-Stream: H.265+, H.265, H.264+, H.264, MPEG-4
H.264 Profile
Main, Baseline, High

Main Stream: H.264+
Video Bit Rate
32 Kb/s to 8 Mb/s
Region of Interest
One Fixed Region for Main Stream and Sub-Stream
Maximum Resolution
2560 x 1440
Frame Rate
Main Stream: 20 fps at 2560 x 1440, 30 fps at 2304 x 1296, 1920 x 1080, 1280 x 720

Sub-Stream: 30 fps at 640 x 480, 640 x 360, 320 x 240
Image Enhancement
BLC, 3D-DNR
Image Settings
Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
Day/Night Switching
Auto, Scheduled
Network Storage
Supports NAS (NFS, SMB/CIFS)
Alarm Triggers
Motion Detection, Video Tampering Alarm, Illegal Login
Network Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour
General Functions
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
API
ONVIF Profiles G & S, ISAPI
Simultaneous Live View
Up to 6 Channels
User/Host Level
Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client
iVMS-4200, Hik-Connect
Supported Web Browsers
Internet Explorer 8 or Higher, Chrome 31-44, Firefox 30.0-51, Safari 8.0 or Higher
Communication Interface
1 x RJ45 100M Self-Adaptive Ethernet Port
Operating Temperature
-22 to 122°F / -30 to 50°C
Operating Temperature
0 to 95% (Non-Condensing)
Power Supply
12 VDC ≤25%, PoE (802.3af, Class 3)
Power Consumption and Current Draw
12 VDC, 0.4 A, 5 W Maximum
PoE: (802.3af, 36 to 57 V), 0.2 to 0.1 A, 6.5 W Maximum
IP Rating
IP67
Material of Construction
Metal and Plastic
Dimensions
4.3 x 3.7" / 110 x 93.2 mm
Weight
0.8 lb / 360 g

Packaging Info
Package Weight
35 lb
Box Dimensions (LxWxH)
19.7 x 18.9 x 17.7"
