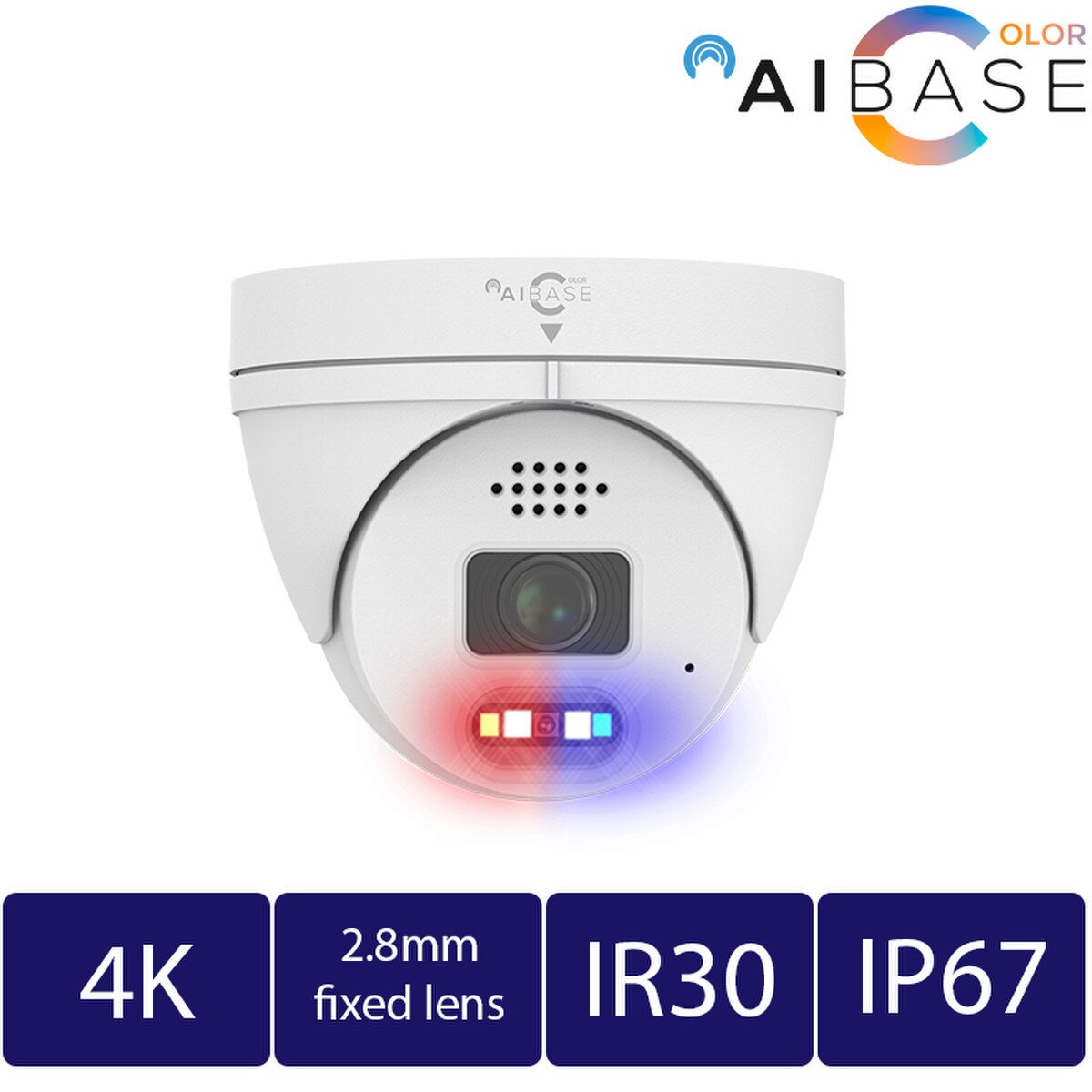

8MP Active Deterrence Full Color Fixed Lens IP Turret (CAM-IP3158W-PV-28-AI-S2)
In stock Ships from Canada
- Tracked deliveryTracking on Canadian shipments
- Local warranty supportCanadian warranty assistance
- Compatibility assistancePre-purchase system check
GTA installation service Available only within the Greater Toronto Area Book installation
Installation service is available only within the Greater Toronto Area (GTA). Service outside the GTA is not currently available. Your appointment is confirmed only after our team verifies the address, installation requirements and final quote.
8MP Active Deterrence Full Color Fixed Lens IP Turret (CAM-IP3158W-PV-28-AI-S2) is backordered and will ship as soon as it is back in stock.
Payment information is encrypted and securely processed.
Compatibility & specifications
Compatibility & specifications
Check camera technology, recorder channels, PoE requirements and storage compatibility before ordering.
Delivery, warranty & returns
Delivery, warranty & returns
Review the shipping estimate, warranty coverage and return conditions shown for this product. Contact us if you need clarification before purchase.
Not sure whether it works with your system?
Contact us before ordering to confirm compatibility with your cameras, recorder and PoE equipment.
8MP Active Deterrence Full Color Fixed Lens IP Turret (CAM-IP3158W-...
8MP Active Deterrence Full Color Fixed Lens IP Turret (CAM-IP3158W-PV-28-AI-S2) is backordered and will ship as soon as it is back in stock.
Product guide
Complete system overview
Review the included recorder, cameras, storage options and accessories in the product description before ordering.
Camera specifications
Resolution: See product specifications
Camera design: Turret
Night-view capability
Check the product description for infrared range, full-color night vision, supplemental lighting and low-light performance.
Remote viewing
Confirm the supported mobile app, remote live view, playback and notification features for this model.
Power and connection
Connection: Wired
Power source: PoE
Specifications
Specifications
| Imaging Device | 1/2.7" |
| Effective Pixels | 8MP 3840(H)x 2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Focal Length (Zoom Ratio) | 2.8mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field of View | Horizontal:110°, Vertical:58°, Diagonal: 131° |
| Min. Object Distance | 2m |
| Lens Type | Fixed(M12) |
| IR LED | 1 |
| WarmLight | 2 |
| IR Viewable Length | Up to 30m |
| WarmLight Viewable Length | Up to 30m |
| Type of complementary light | Default warm light, switchable infrared light |
| Red Blue Light | 2 (1 Red&1 Blue) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Image Setting | Full Color Mode/Day&Night Mode/Schedule |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5-1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | N/A |
| Audio | Built-in microphone, speaker |
| Hardware Reset | Yes |
| Smart Feature | SMD/PID/LCD |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Mainstream@20fps 8MP (3840* 2160) Substeam@20fps 1080P(1920x1080) |
| Video Quality Ajustment | 512Kbps ~ 6Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,HTTPS |
| Security | IP address filter; complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF |
| Web Viewer | IE10/11 |
| Operating Conditions | -30~+60°C/less than ≤ 95% RH |
| Ingress Protection | IP66 |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Material | Metal |
| Dimensions (HxWxD) | 152.3*70.1mm |
| Weight | 350g |
| Product DataSheet | Click here: CAM-IP3158W-PV-28-AI |
