Guarding Vision Model: 5024780877

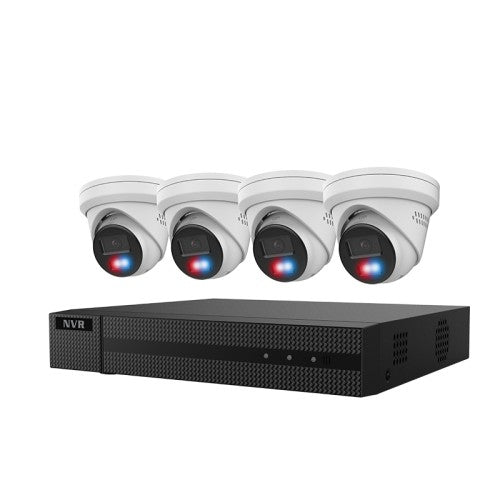

Guarding Vision IP-KIT4642-BR 4 Channel 8MP NVR with 2TB HDD and 4pcs Active Deterrence 6MP Smart Hybrid Light Fixed Turret Camera Kit

$499.00

Shipping calculated at checkout.

In stock Ships from Canada

Tracked deliveryTracking on Canadian shipments
Local warranty supportCanadian warranty assistance
Compatibility assistancePre-purchase system check

GTA installation service Available only within the Greater Toronto Area Book installation

Installation service is available only within the Greater Toronto Area (GTA). Service outside the GTA is not currently available. Your appointment is confirmed only after our team verifies the address, installation requirements and final quote.

安装服务

无需安装 GTA安装服务

Secure payment

Payment information is encrypted and securely processed.

Compatibility & specifications

Check camera technology, recorder channels, PoE requirements and storage compatibility before ordering.

Delivery, warranty & returns

Review the shipping estimate, warranty coverage and return conditions shown for this product. Contact us if you need clarification before purchase.

Not sure whether it works with your system?
Contact us before ordering to confirm compatibility with your cameras, recorder and PoE equipment.

Check compatibility

Product guide

Complete system overview

Review the included recorder, cameras, storage options and accessories in the product description before ordering.

Specifications

- One 4-channel PoE NVR with decoding up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p

- Four 6MP Smart Hybrid Light fixed turret network cameras with efficient H.265+ compression technology

- 2TB Pre-installed HDD

- 1 network cable for NVR

- Support audio and siren alarm with red and blue flashing light

Number of Channels	4
Human/Vehicle Analysis	1ch
Resolution	Up to 8 MP
Two-Way Audio	1-Channel, RCA (2 V p-p, 1 Kilohm)
Bandwidth	Incoming: 40 Mb/s Outgoing: 80 Mb/s
Recording Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI Output Resolution	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
VGA Output Resolution	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio Output	1-Channel, RCA (Linear, 1 Kilohm)
Decoding Formats	H.265+, H.265, H.264+, H.264
Playback Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Remote Connection	32
Synchronous Playback	4 Channels
Decoding Capability	1 Channel at 8 MP 3 Channel at 4 MP 4 Channels at 1080p
Network Protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
SATA	1 x SATA Interface (Up to 8 TB capacity)
Drive Bays	1
HDD Capacity	8 TB
HDD Included	2TB
Network Interface	1 x RJ45 100M Self-Adaptive Ethernet Port
USB	2 x USB 2.0
PoE Interface	4 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power	≤50 W
PoE Standard	IEEE 802.3af/at
Power Supply	48 VDC 1.35A
Power	<65 W
Power Consumption	≤10 W (Without HDD & Enabling PoE)
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90%
Rack Units	1 RU
Dimensions	10.2 x 8.4 x 1.9" / 265 x 240 x 48 mm
Weight	2.2 lb / ≤1 kg (Without HDD)

Camera

Image Sensor	1/2.4", 6 MP Progressive Scan CMOS
Minimum Illumination	Color: 0.005 Lux (f/1.6 with AGC ON) B&W: 0 Lux
Shutter Speed	1/100,000 to 1/3 Seconds
Day/Night	IR Cut Filter
Supplement Light Type	IR,White Light, Red and Blue Light (Flashing Light)
Digital Noise Reduction	3D-DNR
WDR	Digital Wide Dynamic Range
3-Axis Adjustment	Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360°
Lens	2.8mm
Lens Mount	M12
Aperture	f/1.6
Field of View	Horizontal: 105° Vertical: 55° Diagonal: 127°
IR Range	30 m
IR Wavelength	850 nm
Video Compression	Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265/H.264/MJPEG
H.264 Profile	Baseline Profile,Main Profile,High Profile
Video Bit Rate	32 kb/s to 16 Mb/s
Region of Interest	One Fixed Region for Main Stream and Sub-Stream
Maximum Resolution	3200 x 1800
Frame Rate	Main Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 Sub-Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Image Enhancement	BLC, HLC, 3D-DNR
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switching	Auto, Scheduled
Network Storage	Supports NAS (NFS, SMB/CIFS)
Alarm Triggers	Motion Detection, Video Tampering Alarm, Illegal Login
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Built-in Microphone	Yes,1 built-in microphone
Audio Type	Mono sound
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
General Functions	Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
API	Open Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Simultaneous Live View	Up to 6 Channels
User/Host Level	Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client APP	iVMS-4200, HiLookVision
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Linkage	Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
Supported Web Browsers	Plug-in required live view: IE 10, IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
Communication Interface	1 x RJ45 100M Self-Adaptive Ethernet Port
Operating Temperature	-22 to 122°F / -30 to 60°C
Operating Temperature	0 to 95% (Non-Condensing)
Power Supply	12 VDC ≤25%, PoE (802.3af, Class 3)
Power Consumption and Current Draw	12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
IP Rating	IP67 IEC 60529-2013
Material of Construction	Metal and Plastic
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Dimensions	4.3 x 3.7" / 110 x 93.2 mm
Weight	0.8 lb / 360 g
