TP-Link VIGI Insight S445 4MP Full-Color Turret PoE Camera

TP-Link VIGI Insight S445 4MP Full-Color Turret PoE Camera

 更多支付选项
Product description
Shipping & Return
Product reviews



    • 5X Optical Zoom for Easy Installation and Monitoring
    • 4MP Super-High Definition and IR Range Up to 60m (197ft)
    • Human & Vehicle Classification
    • Smart Detection
    • Smart Video Enhancement Technology
    • Audio and Alarm Interface Available
    • IP67 Weatherproof and IK10 Vandal Proof
    • H.265+ Compression Technology
  • CAMERA
    Image Sensor 1/2.9” Progressive Scan CMOS
    Shutter Speed 1/3 to 1/10000 s
    Slow Shutter Yes
    Minimum Illumination 0.005 Lux; 0 Lux with IR Light
    Day/Night Mechanism IR Cut Filter
    Day/Night Switch Unified/ Scheduled/ Auto
    LENS
    Type Motorized Varifocal Lens
    Focal Length 2.7-13.5 mm (5X Optical Zoom)
    Aperture F1.6
    FOV 2.7-13.5 mm:
    • Horizontal FOV: 29.6°-102.0°
    • Vertical FOV: 16.8°-53.8°
    • Diagonal FOV: 34.1°-122.8°
    Lens Mount Φ14
    DORI Distance 2.7-13.5 mm:
    • Detect: 66-207 m (217-579 ft)
    • Observe: 28-86 m (92-282 ft)
    • Recognize: 13-41 m (43-135 ft)
    • Identify: 7-21 m (23-69 ft)
    Angle Adjustment (Manual)
    Range Pan: 0° to 360°, Tilt: 0° to 77°, Rotation: 0° to 360°
    ILLUMINATOR
    IR LED • Quantity: 4
    • Range: 60m (197ft)
    • Wavelength: 850nm
    Illuminator On/Off Control Auto/Scheduled/Always on/Always off
    VIDEO
    Max. Resolution 2688 x 1520
    Main Stream • Frame Rate:
    50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
    60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    • Resolution:
    2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080

    Note:
    • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
    Sub-Stream • Frame Rate:
    50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
    60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    • Resolution:
    1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

    • Note:
    If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
    Bit Rate Control CBR, VBR
    Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
    • Sub-Stream: H.265/H.264
    H.264 Type High Profile
    H.264+ Main Stream Supported
    H.265 Type Main Profile
    H.265+ Main Stream Supported
    Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
    • Sub-Stream: 512 Kbps to 1024 Kbps
    Image Settings • Mirror
    • Brightness
    • Contrast
    • Saturation
    • Sharpness
    • Exposure
    • WDR
    • White Balance
    • Prevent Overexposure to Infrared Light
    • HLC Adjustable by Client Software
    Image Enhancement BLC/3D DNR/HLC/SmartIR
    Wide Dynamic Range 120 dB
    SNR ≥ 52 dB
    Image Parameters Switch Yes
    Privacy Mask Up to 4 Masks
    ROI 1 Region
    OSD Setting Yes
    AUDIO
    Audio Communication One-Way Audio
    Audio Input Yes
    Audio Output Yes
    Audio Compression Yes
    Audio Sampling Rate 8KHz
    Environment Noise Filtering Yes
    Audio Bit Rate 64 Kbps(G.711 alaw)
    NETWORK
    Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
    ONVIF Yes
    API Open Network Video Interface (Profile S/T/G)
    Simultaneous Live View 3 Main Streams & 3 Sub-Streams
    Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
    Web Browser • Google Chrome® 57 and above
    • Firefox® 52 and above
    • Safari® 11 and above
    • Microsoft® Edge 91 and above
    Cloud Yes
    Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
    ALARM AND EVENT MANAGEMENT
    Smart Event • Intrusion Detection
    • Line-Crossing Detection
    • Region Entering Detection
    • Region Exiting Detection
    • Object Abandoned Detection
    • Object Removal Detection
    • Loitering Detection
    • People Detection
    • Vehicle Detection
    • Abnormal Sound Detection
    • Scene Change Detection
    Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
    • Video Tampering Detection
    • Exception ( Illegal Login)
    Alarm Linkage • Memory Card Video Recording
    • Message Push
    • Audible Warning
    • Email Alarm
    • Upload Capture to FTP
    • Alarm Out Device
    Linkage Method N/A
    Output Notification • Message Push
    • Email Alarm
    • Upload Capture to FTP
    INTERFACES
    Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
    Alarm 1 Alarm In, 1 Alarm Out
    Reset Button Yes
    Power DC Power Port
    On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
    Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
    Built-in Speaker N/A
    Audio 1 Audio In, 1 Audio Out
    GENERAL
    Operating Temperature -30–60 °C
    Storage Temperature -40–60 °C
    Operating Humidity 95% or Less (Non-Condensing)
    Storage Humidity 95% or Less (Non-Condensing)

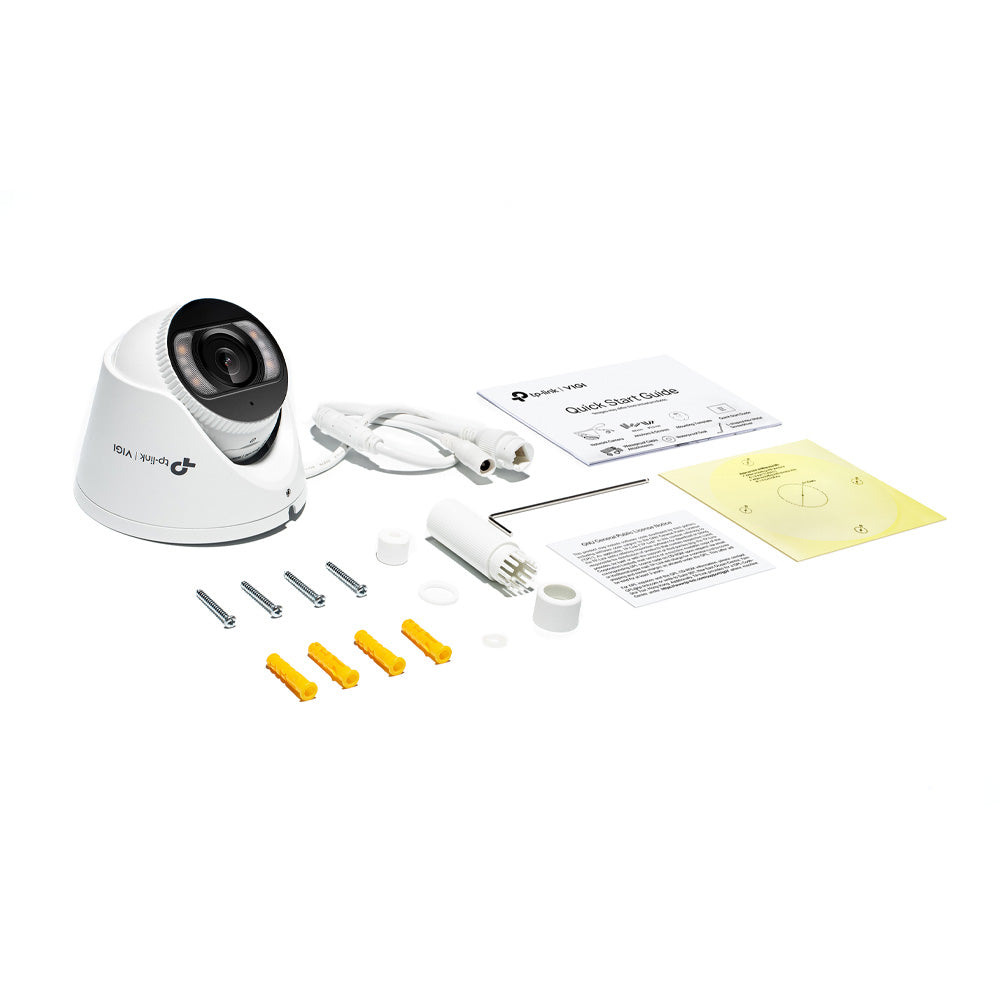

    Package Contents • VIGI Network Camera
    • Quick Start Guide
    • Waterproof Cable Attachments
    • Mounting Accessories
    Material Metal
    Net Weight 0.71 Kg
    Gross Weight 0.96 Kg
    Power Supply • 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug
    • PoE: 802.3af/at, class 0, Max.12 W
    Protection IP67 Weatherproof, IK10 Vandal Proof
    Product Dimensions (L x W x H) Φ4.4 × 3.6 in (Φ112.3 × 92.5 mm)
    Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
