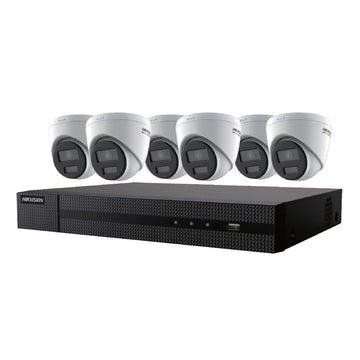

Hikvision EKI-K82T46C 8-Channel 4MP ColorVu PoE NVR Kit

Name: Hikvision EKI-K82T46C 8-Channel 4MP ColorVu PoE NVR Kit
Brand: Hikvision
SKU: 301501653
Price: 1299.0 CAD
Availability: InStock

$1,299.00

Économisez

1000 en stock

Comparer Guide des tailles

Hikvision EKI-K82T46C 8-Channel 4MP ColorVu PoE NVR Kit

$1,299.00

-Record from and Manage up to 8 Cameras

-Up to 8MP Recording Resolution

-2TB Preinstalled HDD

-H.265+/H.265/H.264+/H.264/MPEG-4 Codecs

-8 x PoE Ports

-6 x 4MP ColorVu Turret Cameras Included

-Color Recording at Night up to 98'

-96.5° Horizontal Field of View

-HDMI & VGA Video Outputs

-IP67-Rated Cameras with Microphones

Channels	8
Resolution	Up to 8 MP
Two-Way Audio	1-Channel, RCA (2 V p-p, 1 Kilohm)
Bandwidth	Incoming: 80 Mb/s Outgoing: 80 Mb/s
Recording Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI Output Resolution	30 Hz: 4096 x 2160, 3840 x 2160 60 Hz: 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
VGA Output Resolution	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio Output	1-Channel, RCA (Linear, 1 Kilohm)
Decoding Formats	H.265+, H.265, H.264+, H.264, MPEG-4
Playback Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback	8 Channels
Decoding Capability	1 Channel at 8 MP 4 Channels at 1080p
Network Protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
SATA	1 x SATA Interface
HDD Capacity	6 TB
HDD Included	2 TB
Network Interface	1 x RJ45 1000M Self-Adaptive Ethernet Port
USB	2 x USB 2.0
PoE Interface	8 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power	≤80 W
PoE Standard	IEEE 802.3af/at
Power Supply	48 VDC
Power	≤180 W
Power Consumption	≤10 W without HDD & Enabling PoE
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90% (Non-Condensing)
Rack Units	1 RU
Dimensions	12.4 x 9.4 x 1.9" / 315 x 240 x 48 mm
Weight	≤2.2 lb / ≤1 kg without HDD

Cameras

Image Sensor	1/3" Progressive Scan CMOS
Minimum Illumination	Color: 0.001 Lux at f/1.0 with AGC 0 Lux with White Light
Shutter Speed	1/100,000 to 1/3 Seconds
Slow Shutter	Yes
Wide Dynamic Range	120 dB
3-Axis Adjustment	Horizontal: 0 to 360° Vertical: 0 to 75° Rotate: 0 to 360°
Lens	2.8mm
Field of View	Horizontal: 96.5° Vertical: 50.8° Diagonal: 113.9°
Lens Mount	M12
Focus	Fixed
Aperture	f/1.0
Light Supplement	Yes
White Light Range	98' / 30 m
Maximum Resolution	2560 x 1440
Frame Rate	Main Stream: 20 fps at 2560 x 1440, 30 fps at 1920 x 1080, 1280 x 720 Sub-Stream: 30 fps at 1280 x 720, 640 x 480, 640 x 360
Video Compression	Main Stream: H.265, H.264 Sub-Stream: H.265, H.264, MJPEG
H.264 Profile	Baseline, Main, High Main Stream: H.264+
H.265 Profile	Main Main Stream: H.265+
Video Bit Rate	32 kb/s to 8 Mb/s
Region of Interest	One Fixed Region for Main Stream
Audio Compression	G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC
Audio Bit Rate	64 kb/s (G.711ulaw, G.711alaw) 16 kb/s (G.722.1, G.726) 32 to 160 kb/s (MP2L2) 16 to 64 kb/s (AAC)
Audio Sampling Rate	8 kHz / 16 kHz
Environment Noise Filtering	Yes
Network Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View	Up to 6 Channels
API	ONVIF Profiles G, S & T, ISAPI
User/Host Level	Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client	iVMS-4200, Hik-Connect
Web Browser	Plug-In Required Live View: Internet Explorer 10+ Plug-In Free Live View: Chrome 57.0+, Firefox 52.0+ Local Service: Chrome 57.0+, Firefox 52.0+
Image Settings	Saturation, Brightness, Contrast, Sharpness, AGC, White Balance Adjustable by Client Software or Web Browser
Day/Night Switching	Day, Night, Auto, Schedule
Image Enhancement	BLC, 3D-DNR
Ethernet Interface	1 x RJ45 100M Self-Adaptive Ethernet Port
Storage	Supports microSD Cards up to 256 GB
Built-In Microphone	Yes
Hardware Reset	Yes
Basic Event	Motion Detection, Video Tampering Alarm, Exception
Linkage Method	Upload to FTP/Memory Card, Notify Surveillance Center, Send Email, Trigger Recording, Trigger Capture
Language	English, Ukrainian
General Functions	Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Firmware Version	V5.5.122
Power Consumption	12 VDC, 0.4 A, Maximum 5 W PoE: (802.3af, 36 to 57 V), 0.2 to 0.15 A, Maximum 6.5 W
Power Supply	12 VDC, ±25% PoE: 802.3af, Class 3
Startup Temperature	-22 to 140°F / -30 to 60°C
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95% (Non-Condensing)
Storage Temperature	-22 to 140°F / -30 to 60°C
Storage Humidity	0 to 95% (Non-Condensing)
Approvals	EMC: FCC SDoC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014), RCM (AS/NZS CISPR 32: 2015), KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014), CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)
IP Rating	IP67
Material of Construction	Metal, Plastic
Dimensions (Diameter x Height)	4.33 x 4.08" / 109.9 x 103.6 mm
Weight	0.84 lb / 380 g

Packaging Info

Package Weight	16.185 lb
Box Dimensions (LxWxH)	19.6 x 14.1 x 9.6"

Specification: EKI-K82T46C
